Yeeb Nkab Pusher Rau HDD
ZT-500
Diesel Cav Zog: 264kW
Rated Thrust: 5000kN
Rated Siab: 25MPa
Propeller Lub tog raj kheej Stroke: 3500mm / 5000mm
- Khoom Taw qhia
Drillto Trenchless Co., Ltd yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg cov yeeb nkab pusher rau hdd nyob rau hauv Suav teb, featured los ntawm cov khoom zoo thiab cov nqi zoo. Thov so assured mus yuav cov yeeb nkab pusher rau hdd muag ntawm no los ntawm peb lub hoobkas. Tiv tauj peb rau kev pabcuam kev cai.

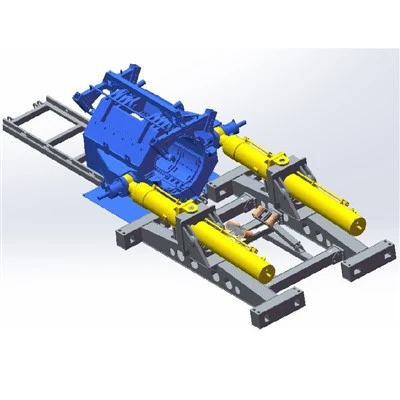

Cov yeeb nkab pusher feem ntau yog tsim los ntawm lub tog raj kheej thawb, lub hauv paus, thiab cov yeeb nkab clamp. Tom qab cov kav dej yog clamped los ntawm cov yeeb nkab clamper, nws muab lub zog thrust lossis rub lub zog los ntawm kev nthuav dav thiab kev cog lus ntawm ob lub tog raj kheej kom paub txog qhov ua ntej lossis rov qab ntawm cov kav dej.
Lub gripper yuav raug thauj los ntawm mobile crane lossis pipelayers raws li tag nrho cov cuab yeej. Yog li gripper seem siv siab -lub zog Q355 steel cov khoom siv txhawm rau txo qhov hnyav thiab txhim kho kev ua haujlwm hauv qhov kub thiab txias
Qhov hnyav txo yog ua tiav los ntawm topological optimization tsim.
Qhov qhib hydraulic lub tog raj kheej thiab cov tswj vaj huam sib luag rau lub clamp qhib yog nyob rau sab saum toj thiab hydraulic lub tog raj kheej qhib tuaj yeem tswj tau cov chaw taws teeb.
Lub hauv paus ntawm Cov Yeeb Nkab Pusher yog cov cuab yeej siv los tsav lub hauv ntej gripper, ua rau kev thawb / rub tawm haujlwm. Nws yog nruab nrog ob lub tog raj kheej hydraulic loj thiab lub hauv paus ruaj khov, tso cai rau nws tsim kom muaj zog rub tawm mus txog 750 tons.
Khoom Parameters
| Serial Number | Yam khoom | Parameter | Lus hais |
| 1 | Diesel Cav Fais Fab | 2 64 kWm | QSL8.9-C360 |
| 2 | Rated Thrust | 5000 kN ib | |
| 3 | Rated Siab | 25 MPa | |
| 4 | Propeller Cylinder Stroke | 3500mm / 5000mm | |
| 5 | Propeller Ceev | Tsawg dua lossis sib npaug li 2.36m / min | |
| 6 | Lub kaum sab xis ua haujlwm | 0℃-15 degree | |
| 7 | Cov yeeb nkab me me | Ntau dua lossis sib npaug li 24 "(610mm) | |
| 8 | Txoj kab uas hla loj | Tsawg dua lossis sib npaug li 56 "(1422mm) | |
| 9 | Hydraulic Tank Muaj peev xwm | 1130L | |
| 10 | Roj Tank Peev Xwm | 440L | |
| 11 | Fais fab chaw nres tsheb Dimensions (L * W * H) | 4200mm * 1500mm * 2000mm | Kev thauj mus los |
| 12 | Qhov Loj (L * W * H) | 4600mm * 4100mm * 1900mm | Detachable rau kev thauj mus los |
| 13 | Router Lub taub hau Dimensions (L * W * H) | 3170mm * 3390mm * 2770mm | |
| 14 | Chaw nres tsheb fais fab hnyav | Kwv yees li 5 tons | |
| 15 | Puag luj | Kwv yees li 20 tons | |
| 16 | Router Lub taub hau hnyav | Kwv yees li 20 tons | |
| 17 | Ambient Kub | -20 ° C -45 ° C |
